0.6/1KV
SCP, SYP
Standards
JISC 3410-1999
IEC 60332-1

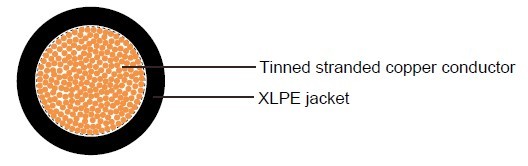

Cable Construction
| Conductor | S | Bunched tinned annealed stranded copper, class 5 according to IEC 60228 |
| Insulation | CP YP |
85°C XLPE/ 75°C PVC as per JIS C 3410 |
Cable Parameter
SCP
| Conductor | Thick. of insulation | Nom. overall dia. | Tolerance | Cable Weight | ||
|---|---|---|---|---|---|---|
| Size | Construction | O.D | ||||
| mm² | No./mm | mm | mm | mm | mm | kg/km |
| 1.5 | 30/0.25 | 1.58 | 0.9 | 3.7 | 0.4 | 26 |
| 2.5 | 49/0.25 | 2.02 | 1 | 4.3 | 0.4 | 38 |
| 4 | 55/0.30 | 2.57 | 1 | 4.8 | 0.4 | 55 |
| 6 | 82/0.30 | 3.14 | 1 | 5.3 | 0.4 | 75 |
| 10 | 80/0.40 | 4.13 | 1.1 | 6.6 | 0.4 | 125 |
| 16 | 7/18/0.40 | 5.88 | 1.1 | 8.3 | 0.4 | 190 |
| 25 | 7/28/0.40 | 7.32 | 1.2 | 10 | 0.4 | 280 |
| 35 | 7/39/0.40 | 8.67 | 1.4 | 11.8 | 0.5 | 390 |
| 50 | 19/21/0.40 | 10.3 | 1.4 | 13.4 | 0.5 | 550 |
| 70 | 19/19/0.50 | 12.2 | 1.6 | 15.7 | 0.6 | 770 |
| 95 | 19/25/0.50 | 14 | 1.7 | 17.7 | 0.7 | 1000 |
SYP
| Conductor | Thick. of insulation | Nom. overall dia. | Tolerance | Cable Weight | ||
|---|---|---|---|---|---|---|
| Size | Construction | O.D | ||||
| mm² | No./mm | mm | mm | mm | mm | kg/km |
| 0.75 | 24/0.20 | 1.13 | 1.2 | 3.8 | 0.4 | 21 |
| 1 | 32/0.20 | 1.27 | 1.2 | 3.9 | 0.4 | 24 |
| 1.5 | 30/0.25 | 1.58 | 1.2 | 4.2 | 0.4 | 30 |
| 2.5 | 49/0.25 | 2.02 | 1.2 | 4.7 | 0.4 | 41 |
| 4 | 55/0.30 | 2.57 | 1.2 | 5.2 | 0.4 | 60 |
| 6 | 82/0.30 | 3.14 | 1.2 | 5.8 | 0.4 | 80 |
| 10 | 80/0.40 | 4.13 | 1.2 | 6.8 | 0.4 | 125 |
| 16 | 7/18/0.40 | 5.88 | 1.3 | 8.7 | 0.4 | 195 |
